Automatic Extrusion Blow Molding Machine For Cosmetic Packaging
Extrusion Blow Molding Machine
A fully automatic EBM machine offers a range of benefits, including increased production efficiency, consistent product quality, cost savings, and enhanced safety measures. By automating key processes in extrusion blow molding, these machines improve overall productivity and competitiveness in the manufacturing industry.
Extrusion Blow Molding (EBM) machines are a type of equipment used in the manufacturing industry to produce hollow plastic products such as bottles, containers, and other similar items.
Extrusion Blow Molding Machine Details
| Main Technical Parameter |
| Model | | 80 | 90 |
| Max.Product Volume | (L) | 40 | 60 |
| Theoretical Output | (PC/h) | 600 | 450 |
| Screw Diameter | (mm) | 80 | 90 |
| Screw L/D ratio | (L/D) | 25-30 | 25-30 |
| Screw drive power | (KW) | 37-45 | 45-55 |
| Screw heating capacity | (KW) | 16-20 | 20-25 |
| Output of HDPE | (kg/h) | 120-140 | 140-180 |
| Oil pump drive power | (KW) | 15-22 | 18.5-37 |
| Clamping force | (KN) | 240 | 300 |
| Platen Opening Stroke | (mm) | 400-900 | 450-1050 |
| Storage Capacity | (L) | 4.8 | 6.6 |
| Max.Die Diameter | (mm) | 300 | 350 |
| Die heat capacity | (kw) | 9.5 | 11.5 |
| Average Energy Consumption | (kw/h) | 27.5 | 33.5 |
| Blowing pressure | (Mpa) | 0.8 | 0.8 |
| Air Consumption | (M³/MIN) | 0.8 | 1 |
| Cooling water pressure | (Mpa) | 0.3 | 0.3 |
| Water consumption | (L/MIN) | 80 | 100 |
| Size of machine | (LxWxH) /m | 4.3x2.2x3.6 | 4.6x2.5x4.0 |
| Weight of machine | (TON) | 12.5 | 14.5 |
Extrusion Blow Molding Machine Working Principle
· The process begins with plastic resin being fed into the extruder, where it is heated and formed into a tube-shaped parison.
· The parison is then transferred to the mold cavity and clamped into place.
· Compressed air is blown into the parison, expanding it to conform to the shape of the mold.
· Once the plastic has cooled and solidified, the mold opens, and the finished product is ejected.

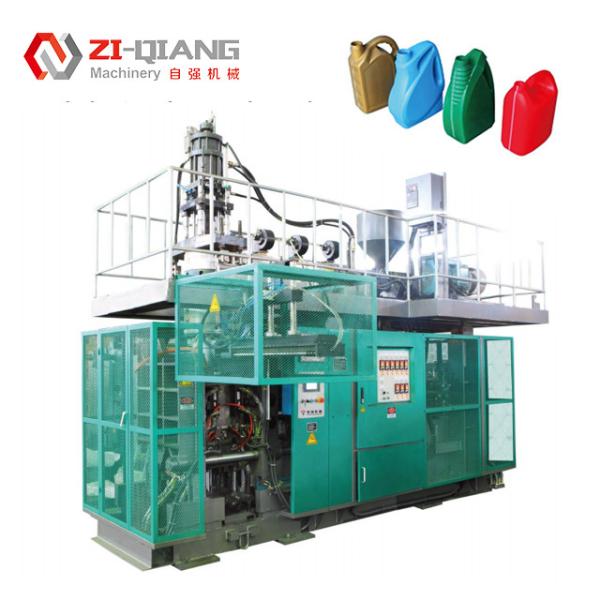

Automatic Extrusion Blow Molding Machine
Why choose us?
1. Provide comprehensive training for customers.
2. Ensure 100% operational stability of products before delivery.
3. Offer "pre-sales," "in-sales," and "after-sales" solutions to customers 24 hours.
4. Customized design to meet various needs of different customers.
5. 24 hours debugging, with after-sales personnel ready at all times.
6. Provide a complete set of production lines.
7. Offer online product testing equipment, image inspection, and reliable quality control.
8. Our company provides a one-year warranty for equipment molds and lifetime maintenance.
